The heart of the RUGGED T1000 – an Intel® Core® i5-10500TE CPU with up to 6x 3.7 GHz – is combined with both an Intel® UHD Graphics 630 and an NVIDIA® Quadro® T1000 graphics card. The system is equipped as standard with 16GB DDR4 RAM and a 512 GB M.2 PCIe 3.0 NVMe SSD.

The extended temperature range of -40°C to +70°C, a wide range power input of 9 – 48V and the passively cooled housing ensure that the Mini-PC can be used not only outdoors but also in vehicles.

Battery pack, 4G, PoE and GPS module

As befits one of our RUGGED PCs, the T1000 model can also be expanded with numerous modules. In addition to a 4G module, this also includes a battery pack, which ensures that Windows shuts down properly. A GPS module and a PoE module are also optionally available to optimally adapt the system to individual needs.

Variety of connections with 10x LAN, 4x USB and 3x COM

There is a large number of connections on the front and back panel of the housing with dimensions of 95 x 260 (with wall bracket 290) x 250 mm. These include five video outputs (3x DisplayPort 1.2, 2x HDMI 2.0b), 10x RJ45 GbE LAN ports and three COM RS 232/422/485 ports. A total of 4 USB 3.2 Gen 1×1 interfaces are available to connect the system to other devices and exchange data. The system also has 2x SIM card slots.

Optional WiFi and operating system

The RUGGED T1000 can optionally be equipped with WiFi or an operating system – depending on requirements. Ubuntu, Windows 11 Pro and Windows 10 IoT are available.

Thanks to its numerous expansion options from WiFi to GPS to the battery pack, the RUGGED T1000 can be used in a wide variety of areas. The system not only shines in outdoor areas, the T1000 also feels at home in vehicles or for security monitoring. The system is now available and can be configured and ordered according to your wishes at www.spo-comm.de.

Highlights and technical data at a glance:

• CPU: Intel® Core® i5-10500TE (6x 2.3 GHz, max. 3.7 GHz)
• GPU: Intel® UHD Graphics 630 / NVIDIA® Quadro® T1000 Mobile
• RAM: 16GB DDR4
• SSD: 512 GB M.2 PCIe 3.0 NVMe
• Max. resolution: 4096 x 2340 @ 60Hz (4K)
• 5 independent displays
• Dimensions (H x W x D): 95mm x 260mm x 250mm
• Passive cooling w/ 0,6 m/s air flow
• PSU: 9V – 48V optional
• Ambient conditions: -40° up to +70°C at 10-90% non-condensing humidity 

Anschlüsse: 

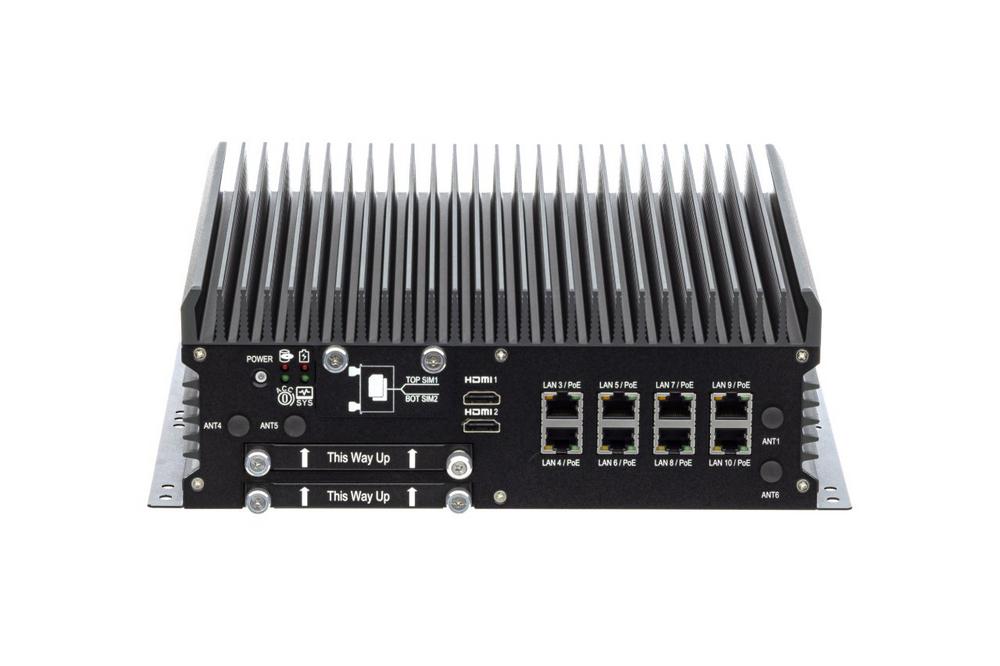

Frontpanel:

• 8 x LAN RJ45 GbE (Intel® i210-AT)
• 2 x HDMI / 1200p@60Hz (MXM Graphics)
• 2 x SIM Card Socket
• 2 x 2,5” Drive Bay for HDD / SSD (RAID 0,1,5)

Backpanel:

• 3 x Audio (Mic In, Line Out, Line In)
• 3 x DP (Intel® GPU)
• 4 x USB 3.2 Gen1 Type A
• 2 x LAN RJ 45 GbE (Intel® i210-AT + i219LM)
• 3 x COM RS 232/422/485 (CAN optional)
• 1 x GPIO (8 x DI & 4 x DO; COM optional)
• 1 x DC-IN Phoenix

• WiFi / GPS / 4G / CAN-Bus / PoE / Backup Battery optional
• Wall mount included
