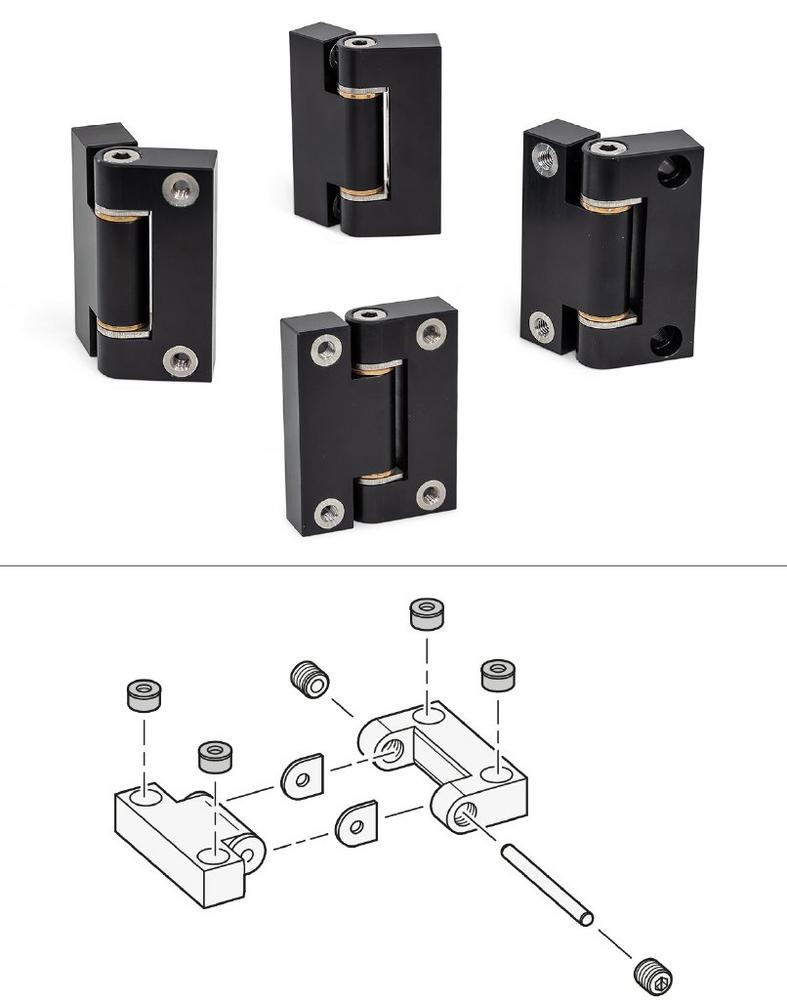

The GN 7580 family consists of three size variants, each with four inner and outer leaf types. The leaves differ in turn by the type of mounting, which can be tangential or radial and make use of countersunk cylindrical bores or integrated threaded bushings of stainless steel. Plus, Ganter put thought into ensuring simple and positionally accurate mounting: The fitting bores ensure exact positioning of the hinges during installation.

The four leaf types are designed to be mutually compatible and can be used together as needed in any combination. As usual with Ganter, they can even be ordered separately via specific article numbers. This ensures that the precision hinges cover a very wide range of applications. In general, Ganter supplies the precision hinges pre-assembled according to the customer-specific configuration.

To ensure lasting precision, the hinges can be re-adjusted at any time. The axial adjusting screws allow the hinge to be adjusted for smooth or stiff motion. The materials have been chosen in line with the level of precision. The hinges are made of black anodized and high-strength alloyed aluminum, while the bearing bushings are made of bronze. Ganter uses stainless steel for the hardened hinge axis as well as the thrust washers and adjusting screws. An additional polyamide coating on the adjusting screws provides for thread locking.

More information on Ganter standard parts can be found on the internet at ganternorm.com
