One good example of climate-friendly packaging in the beverage industry is Nature MultiPack by KHS: in place of shrink film, paper or cardboard, here just a few dots of adhesive are required to turn PET bottles and aluminum cans into packs. This means that 85% less material is consumed compared to conventional setups. Furthermore, in the best instance just one third of the energy is needed for production.

Minimalist addition

So that a Nature MultiPack can be fabricated and taken home by the consumer without any plastic having to be used, KHS has now combined it with a further minimalist feature: what’s known as the BottleClip Carrier made of kraft paper has now been developed in close cooperation with the Hinojosa Packaging Group, a leading company in the design and manufacture of sustainable packaging solutions. The convenient carrying handle is slotted onto just two bottles in the pack, regardless of how many this actually contains. Here, two pre-punched and folded tabs are erected and hooked under the ring on the bottle neck. This ensures that the carrying handle sits firmly and the pack can be safely transported.

Comfortable handling and great flexibility

Especially when handling heavier packs, conventional handles made of plastic film often cut into the shopper’s hands. In contrast, the cardboard carrying handle is far more pleasant to grip. When the consumer picks up the pack by the BottleClip Carrier, its long sides bend upwards. This protects palms from sharp punched edges and bottle caps. Once home, the cardboard handle can be easily removed and recycled together with other recovered paper.

Flexibility is writ large regarding both the packs and the cardboard carrying handle. Pack sizes of two to eight PET bottles containing 250 milliliters to two liters each are possible. “We’ve made sure to create a uniform look and feel for all sizes,” says KHS project manager Manfred van Triel. Minimal adjustments were made to the respective punching dies to suit the bottle diameter and volume and ensure the best possible functionality.

Extensive testing at the development stage

KHS designed the clip in an iterative process with its partner Hinojosa that specializes in sustainable food and beverage packaging solutions. Extensive pack life cycle testing also included consumer handling and logistics tests, among others. Various parameters were constantly optimized during the process.

The result is a carrying handle made of cardboard that’s large enough to include product information and the multipack barcode – but at the same time is as small and as stable as possible. “We believed it was important to find a shape that’s as simple as possible for application in the packer,” emphasizes van Triel. “What good is the best solution if it’s so complex that it can’t be quickly and easily processed on our machines?”

Reliable processing

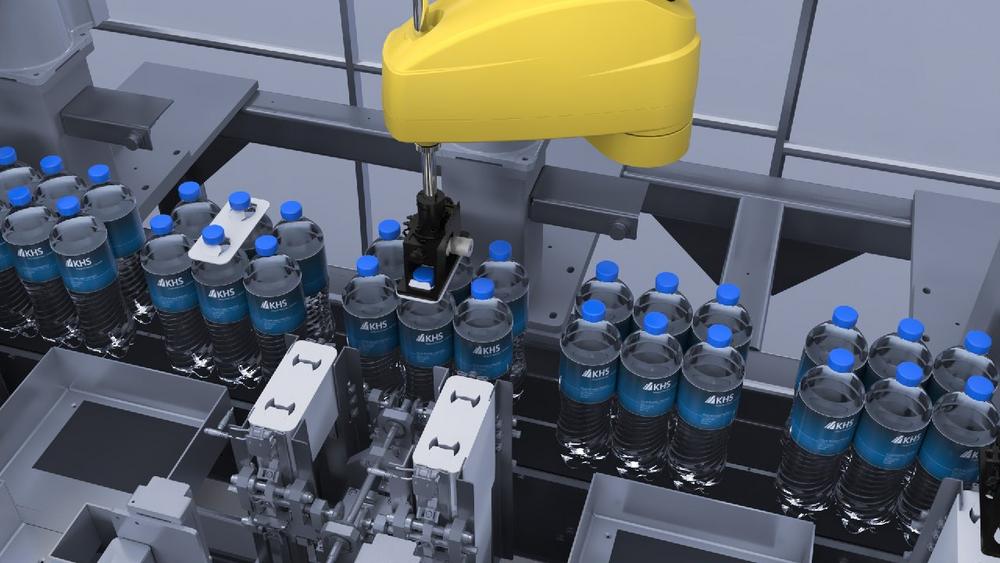

Great importance was thus attached to devising a sophisticated logistics process. The BottleClip Carrier is supplied in cartridges, i.e. secondary cartons, that can be easily fed into the machine magazines in a loading process. “This is crucial to the performance of the system,” van Triel explains. Not only is there less operator involvement and material consumption; the amount of space needed is also reduced. The new application module specifically saves up to four meters in machine length in direct comparison to a machine that processes conventional film carrying handles. For beverage producers with limited production space, this is an especially relevant argument.

The interest being shown by the industry in the new equipment is considerable, with the first projects already in preparation. This comes as no surprise to van Triel. He’s convinced that it would be hard to find a multipack currently on the market that uses less material.
