The enwitec PowerBackup 63 VERTO PLUS EU(DE) provides an island grid for a full backup to all hybrid inverters of the FRONIUS VERTO PLUS type in the event of a grid failure. The box is available in two variants: one with FRT support of the grid by the inverter, which is normatively required in many EU countries, and a variant without FRT support, which was specially developed for the German market. Both boxes can be operated with a maximum grid-side pre-fuse of 63A and offer the possibility of pre-parameterization for three-pole or all-pole disconnection, depending on the grid type.

Unique Features: The PowerBackup 63 VERTO PLUS EU(DE) stands out for its universal applicability for all new performance classes of the Fronius VERTO PLUS (15 / 17.5 / 20.0 / 25.0 / 30.0 / 33.3 KW). The FRT variant is suitable for the entire EU market (except Germany and Italy) and can be connected to all common supply grids. Another advantage is the connection up to 63A pre-fuse, while Fronius‘ own backup products currently only reach up to 35A.

Technical Specifications: The box is available in two variants:

• Variant 1 – "without FRT" (Article number 10019509)
  • Exclusively for the German market (+ Switzerland)
  • Max. pre-fuse "grid" 63A
  • Incl. Fronius Smart-Meter TS65A-3
  • For supply grids: TN-C; TN-S; TT (no TN-C grid in the consumer distribution)
  • Suitable for all performance classes VERTO PLUS
  • Incl. all-pole circuit breaker "MCB" and residual current circuit breaker "RCD" (for grid operation in the TT grid)
  • Pre-configuration for three-pole or all-pole disconnection using plug bridges
  • Connections throughout spring-loaded terminals
  • All necessary cable glands in the accessories
  • Wall mounting indoors, dimensions 600 x 315 x 155mm
• Variant 2 – "with FRT" (Article number 10019335)
  • For the entire EU 27 market (except Italy and DE/Switzerland)
  • Max. pre-fuse "grid" 63A
  • Incl. Fronius Smart-Meter TS65A-3
  • For supply grids: TN-C; TN-S; TT (no TN-C grid in the consumer distribution)
  • Suitable for all performance classes VERTO PLUS
  • Incl. all-pole circuit breaker "MCB" and residual current circuit breaker "RCD" (for grid operation in the TT grid)
  • Pre-configuration for three-pole or all-pole disconnection using plug bridges
  • Connections throughout spring-loaded terminals
  • All necessary cable glands in the accessories
  • Wall mounting indoors, dimensions 600 x 315 x 155mm

Quality Standards and Certifications: The PowerBackup 63 VERTO PLUS EU(DE) meets all relevant quality standards and certifications, including CE (Low Voltage + EMC), EN 61439-1, EN 61439-2, EN 61439-3, EN 60255-26, EN 61000-6-2, and EN 61000-6-3.

With the PowerBackup 63 VERTO PLUS EU(DE), enwitec targets PV and electrical wholesalers in the EU as well as owners and interested parties of solar systems. It is specially developed for the new Fronius hybrid inverter series "VERTO PLUS". With one box, the performance classes of the series (up to 33.3KW) are completely covered.

The boxes meet all required European safety standards and are suitable for the entire EU market (except Italy and Germany). Distribution is through the wholesale trade for PV products. Manufacturer declarations on system compatibility are issued by Fronius and attest to the excellent cooperation with the system manufacturer Fronius.

The Power Backup 63 VERTO PLUS ideally complements the Fronius backup products!

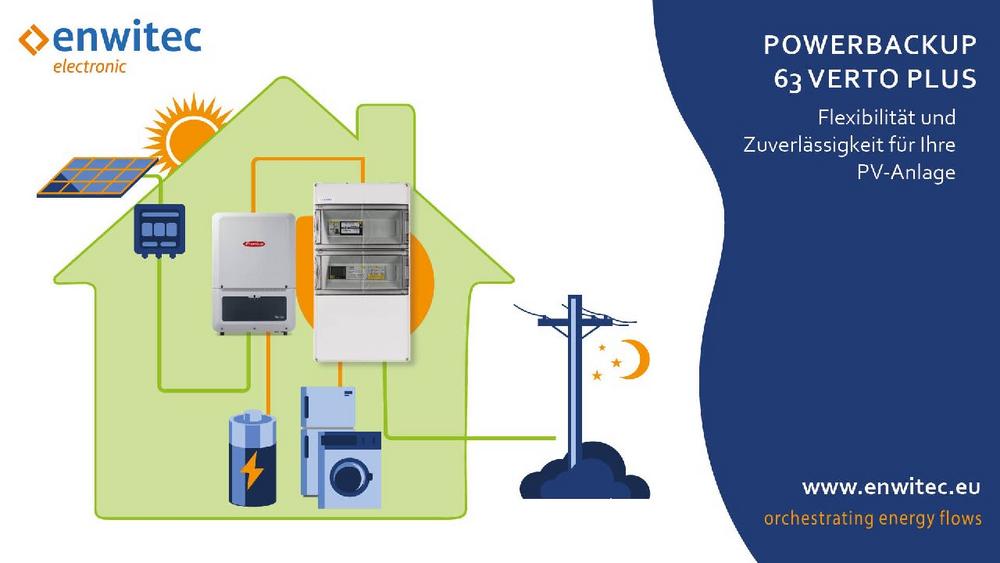

The enwitec PowerBackup 63 VERTO PLUS EU(DE) offers a comprehensive solution for automatic switching from grid to emergency power operation in the event of a grid voltage failure – "blackout" – and vice versa when the grid returns. With an integrated smart meter, switchable three-pole/all-pole disconnection, and FRT capability, it ensures maximum flexibility and reliability for your PV system. Owners of solar systems as well as electrical and solar installers will benefit from the well-thought-out features and robust construction of this grid switching box.

For more information about the enwitec PowerBackup 63 VERTO PLUS EU(DE), please visit https://enwitec.eu/powerbackup-63-verto-plus/.
